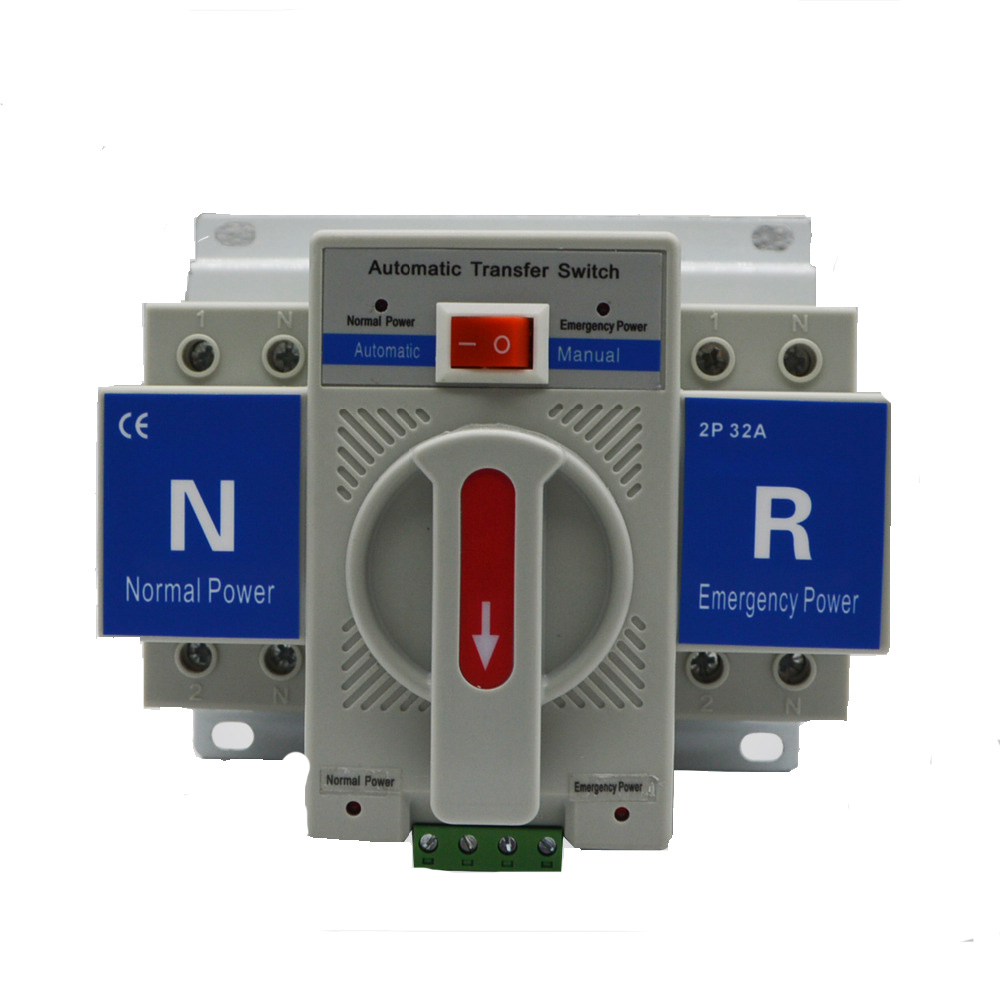

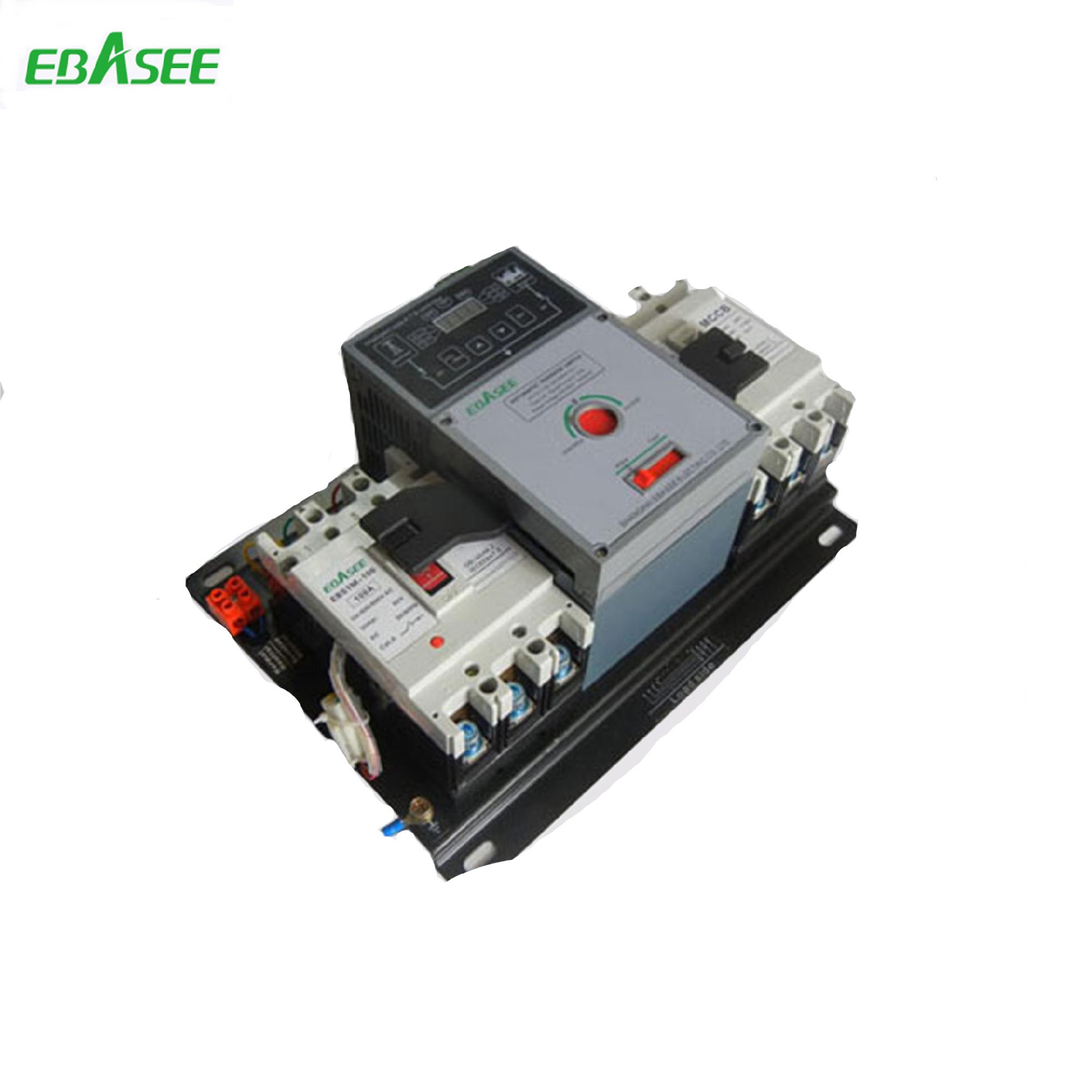

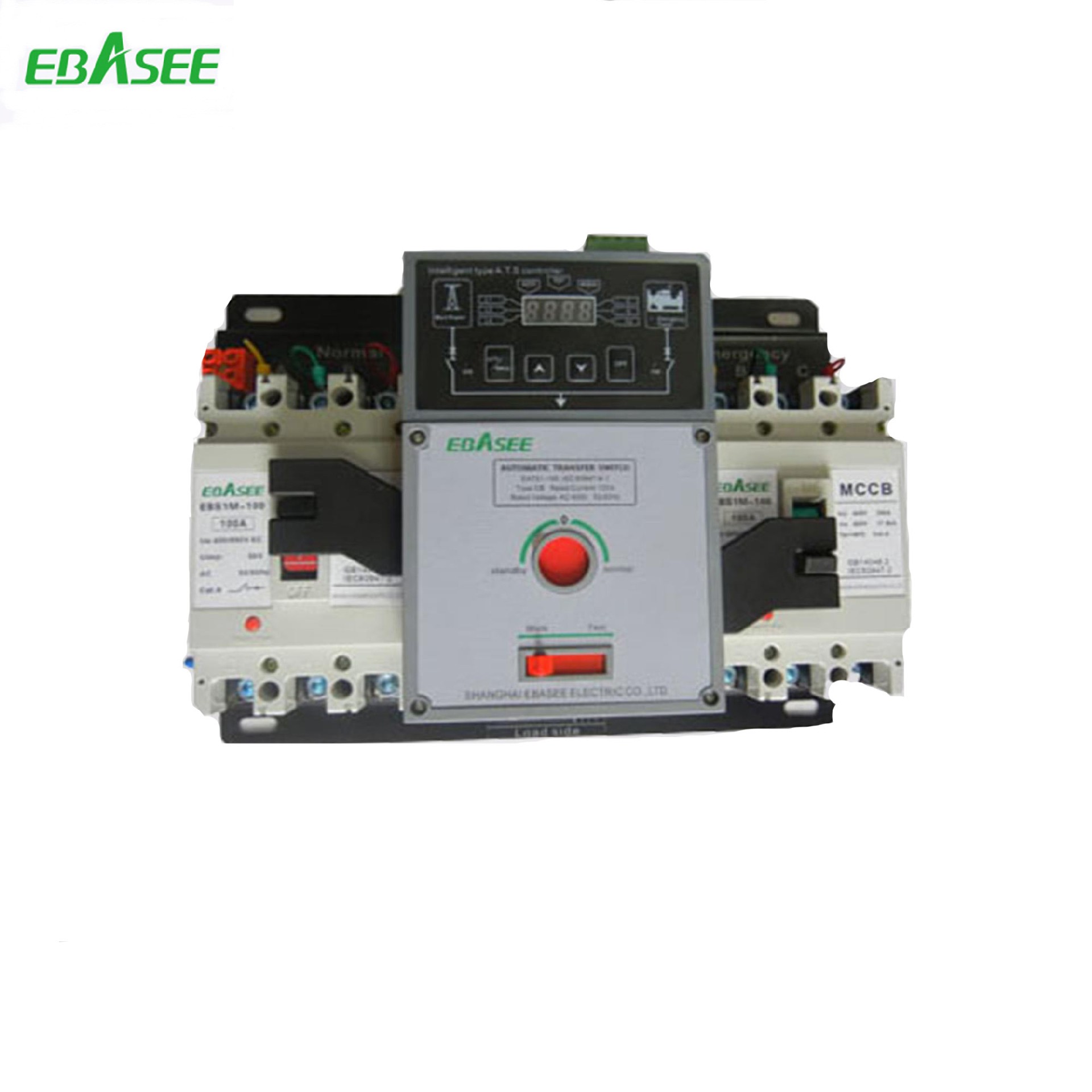

EATS3 Automactic Changeover Switch ATS
EATS3 ATS 1.Ambienttemperature:-5~+40℃, the average value cannot exceed to +35℃within 24h 2.Altitude:≤2,000m 3.Relative humidity:≤95% 4.Pollution level:II. 5.Installation location:Mount on the place where has no obvious vibration or impact
Function
EATS3 series automatic transfer switch is suitable for the rated voltage 240/415V AV 50/60Hz frequency, emergency power supply system. One source power failure, ATS automatically transfer between power supply and backup power source, no need manual operating, ensure the power supply reliability of important user, Mainly used in hospitals, shopping mall, bank, chemical industry, metallurgy, high-rise building, military facility and fire protection, etc. Some important places where do not allow power off.
The EATS3 automatic transfer switch consists of ontology and switch controller of two parts. Products use the electromagnetic drive, switching controller work power; standby supply is used to exchange 220V voltage, without additional control power supply. Ontology switch has the function of electrical or mechanical closing instructions used as a isolation indicator.
Technical Parameter
Model type | EATS3 | |
Rated current | 13~125A | |
Operating current | 3.5A | |
Rated short-time withstand current | 5kA | |
Operating period | 10times/s | |
Pole | 2 pole, 3 pole, 4 pole | |
Standard | IEC60947-6-1 | |
Features
n Small volume, convenient installation
n Under voltage and over voltage protection, open-phase protection , complete function
n Operating parameter adjustable
n There are one-piece, split two types for users choose
n Open and close operated with a electromagnetic coil
n Easy structure and easy maintain
n No extra electric conduction parts, simple structure but long service life
Ordering Note:
Product name, model
Rated Current
Operating Current
No. of Poles
Rated Short-time Withstand Current
