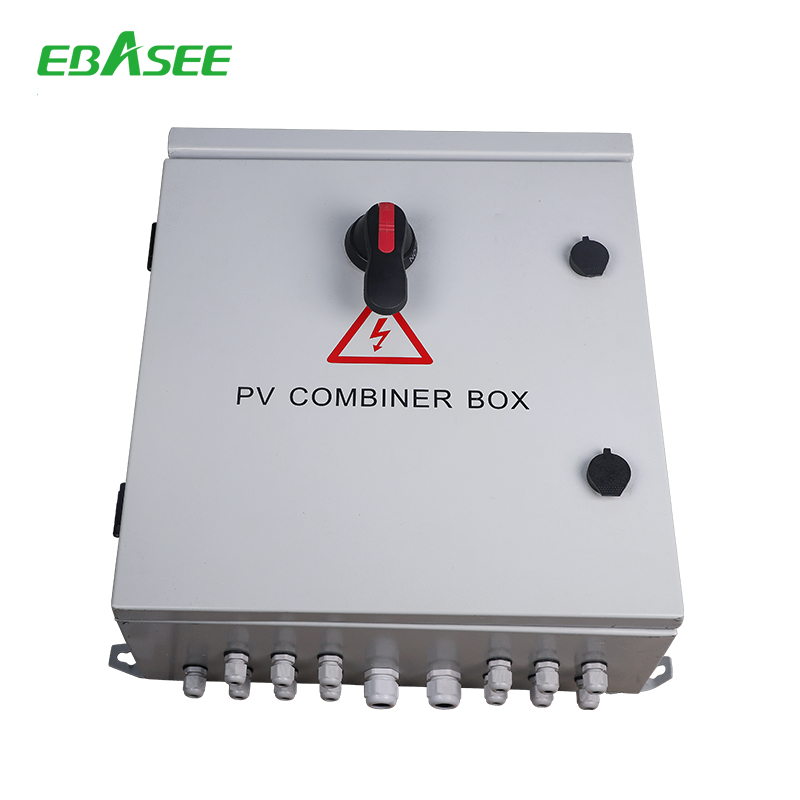

1500V DC Waterproof IP65 Metal DC Solar PV Combiner Box

DC Combiner Box FeautreMaterial:Stainless SteelWaterproof Level:IP65Max of input channels:6Way:4,6,8,10,12Voltage protection level:3.8kAInstallation:wall mothed

Hbf51cd5fa6cf4025a3101f3741b9e44aB (1).png

PV Combiner Box Technical Parameters

Name
BXPVZ-6/1
Ways(Loops)
4,6,8,10,12
System maximum DC voltage
1000
Protection level
IP65
Maximum input current per channel
1 5A
Output switch
DC circuit breaker
(standard)
DC rotary isolating switch
(optional)
Maximum number of input channels
6
Maximum output switching current
20A/32A
SMC4 waterproof connector
Standard
Number of inverter MPPT
N
Photovoltaic DC fuse
Standard
Number of output channels
1
Photovoltaic DC surge protector
Standard
Lightning protection
Monitoring module
Optional
Test category
I pole protection
Anti-reverse diode
Optional
Nominal discharge current
20kA
Box material
metal
Maximum discharge current
40kA
Installation method
Wall-mounted
Voltage protection level
3.8kV
Operating temperature
-25C~+55C
Maximum continuous operating voltage
1050V
Altitude
2000m
Number of poles
3P
Allow relative humidity
0~95%, no condensation
