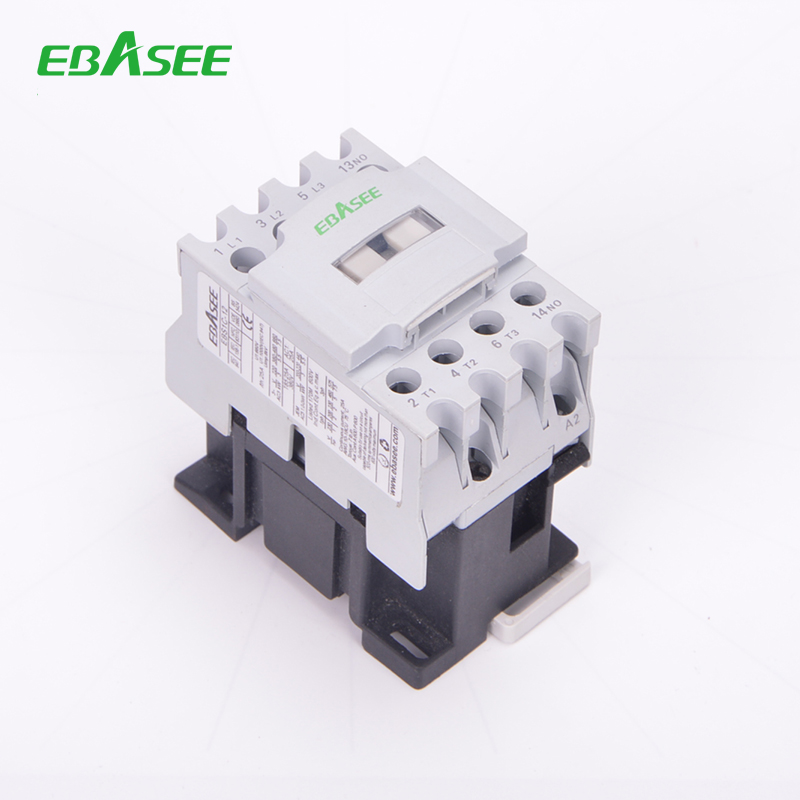

EBS1C AC Contactor

EBS1C AC Contactor 1.Ambienttemperature:-5~+40℃, the average value cannot exceed to +35℃within 24h 2.Altitude:≤2,000m 3.Relative humidity:≤95% 4.Pollution level:II. 5.Installation location:Mount on the place where has no obvious vibration or impact

Function

AC contactor mainly applies to the circuit of AC 50/60Hz,and rated insulation voltage 660V,rated operating voltage up to 690V.When used in AC-3,and rated operational voltage 380V and rated current up to 9A,for long distance breaking circuit and frequency starting or control the motor.



Technical Parameter

Model Name


EBS1C AC magnetic contactors

Standard


IEC60947-4  SEMKO

Poles


3P 4P

Rated current In(A)


9 12 18 25 32 40 50 65 80 95Amp

Rated voltage Un(V)


230V 240V 380V

Frequency of coil


50Hz, 60Hz, 50/60Hz

Number of auxiliary contact


10 /01 /11

Mechanical life (times)


10000000

Protection grade


IP20



Features

This EBS1C AC contactor with a clear dust cover for protection and more pretty.

Combined with the auxiliary contact block,timer delay and mechanical interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, stardelta starter

With the thermal relay ,it combined into the electromagnetic starter.

Full set accessories

Auxiliary contact group Top hung/side hung

Time-delay auxiliary contact


Ordering Note:

Product name and model

Related current

No. of NO/NC auxiliary contact

Voltage of coil

Frequency of coil
