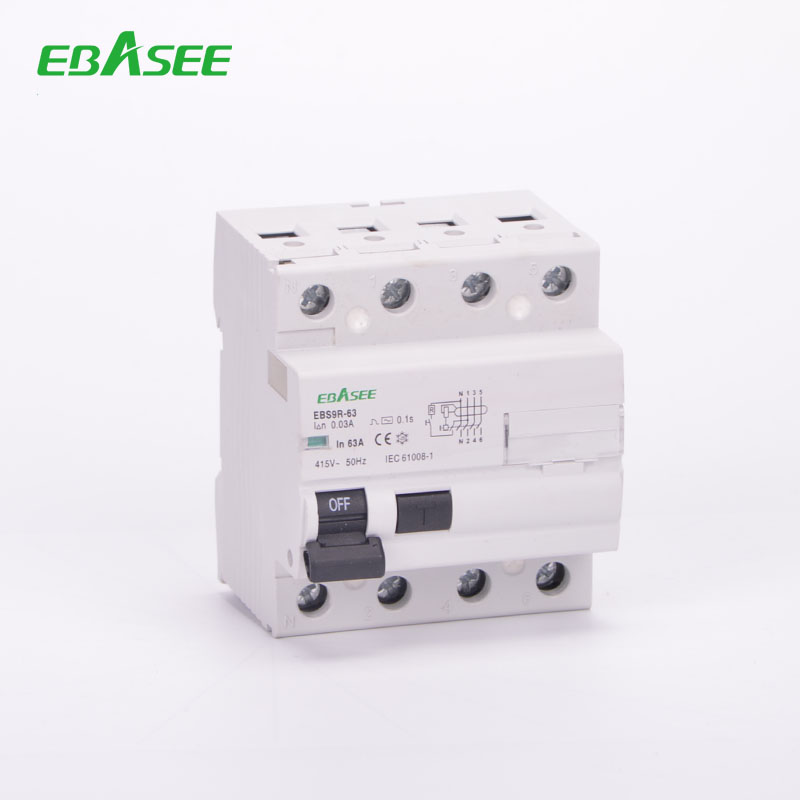

EBS9R RCCB Circuit Breakers
EBS9R1.Provides protection against earth fault/leakage current and unction of isolation2.High short-circuit current withstand capacity3.Application to terminal and Pin/U type busbar connection4.ON/OFF display function of contact position5.Fire resistant plastic parts endures abnormal heating and str...
Function
EBSE9R residual current circuit breaker is well matched with EBS9B, eBS9B and EBS9BN miniature circuit breaker. It is also named as RCCB.
1.Elegant appearance; cover and handle in arc shape make comfortable operation
2.Contact position indicating window
3.Transparent cover designed to carry label
3.In case of overload to protected circuit, RCCB handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operated manually.
4.Provides protection against earth fault/leakage current and function of isolation.
5.High short-circuit current withstand capacity
6.Applicable to terminal and Pin/Fork type busbar connection
7.Equipped with finger protected connection terminals
8.Fire resistant plastic parts endures abnormal heating and strong impact
9.Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
10.Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
Technical Parameter
Model name | EBS9R | |
Standard | IEC61008 | |
Poles | 2P, 4P | |
Rated current In(A) | 25, 40, 63 | |
Rated voltage Un(V) | 230/400V AC 50/60Hz | |
Release type | Electro-magnetic type | |
Residual current characteristics | A, AC, S | |
Rated making and breaking capacity | 630A | |
Rated residual operating current I△n(A) | 30, 100, 300, 500mA | |
Installation | Installed on 35mm DIN rail |
Ordering Note
1.Product name,model&frame level
2.Poles
3.Rated current
4.Rated residual current
5.Quantity
