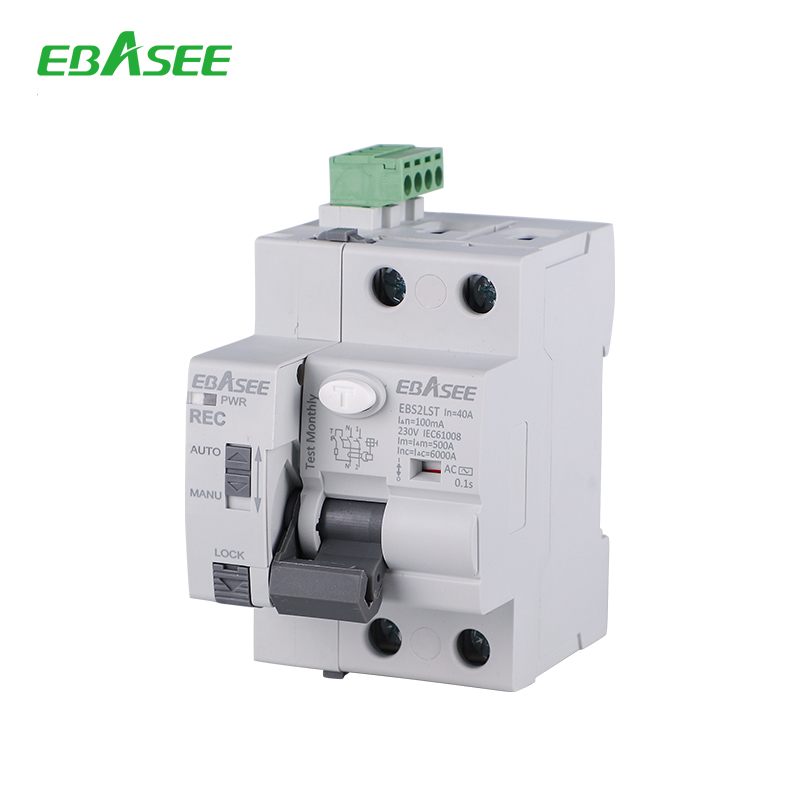

EBS2LST Auto Rest Recloser REC RCCB Circuit Breakers
Functionthe recloser rccb can be widely used in power grid terminal lines,new energy circuitmanagement ect.1.Can work with circuit breakers and earth leakage switches, remote Closing and Sectional Breaker / Leakage Protection Switch2.Controlling circuit breakers and leakage protection switches with ...
| Model | EBS2LST |
| Control method | Digital input control and automatic recloser |
| Power terminais | A1-A2 |
| Voltage fuctuation range | AC 220V (50-60H2) |
| Power consumption | AC max.1VA(standby) max.20VA(Working) |
| Indicator light | Red and green LED |
| Action time | s0.1S |
| Automatic ripping times | 3 times |
| Redlose time delay | 10S-60S-300S |
| Clearing times ater closing | No more tips or clears within |
| 15 minutes of successful closing | |
| Mechanical life | 10000 |
| Electrical life | 4000 |
| Working temperature | :20C to +50C(-4°Ft 131°F) |
| Installation | Din ral EN/IEC60715 |
| Protectlion class | IP20 |
