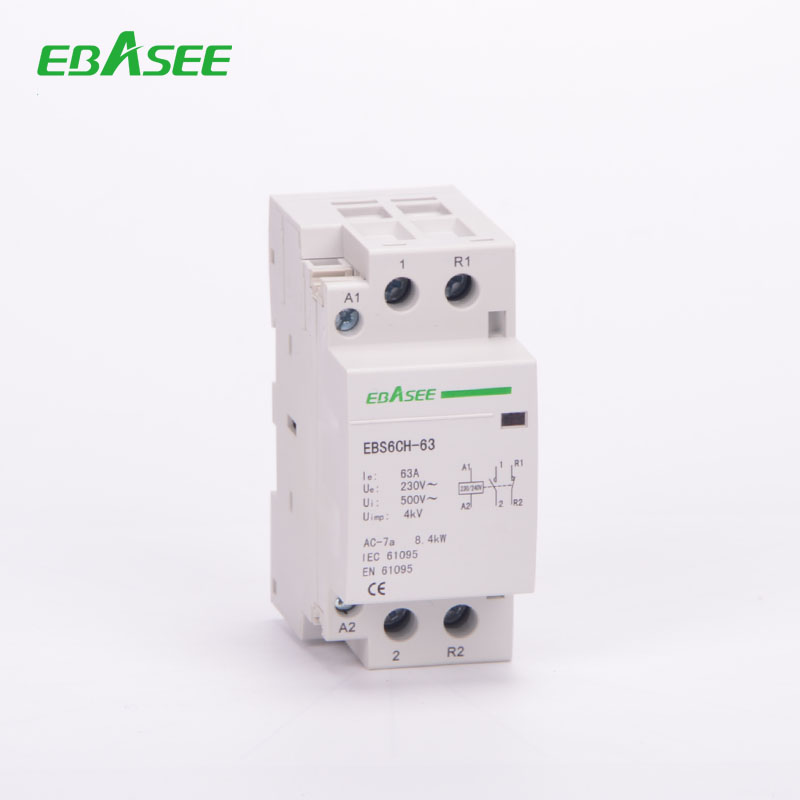

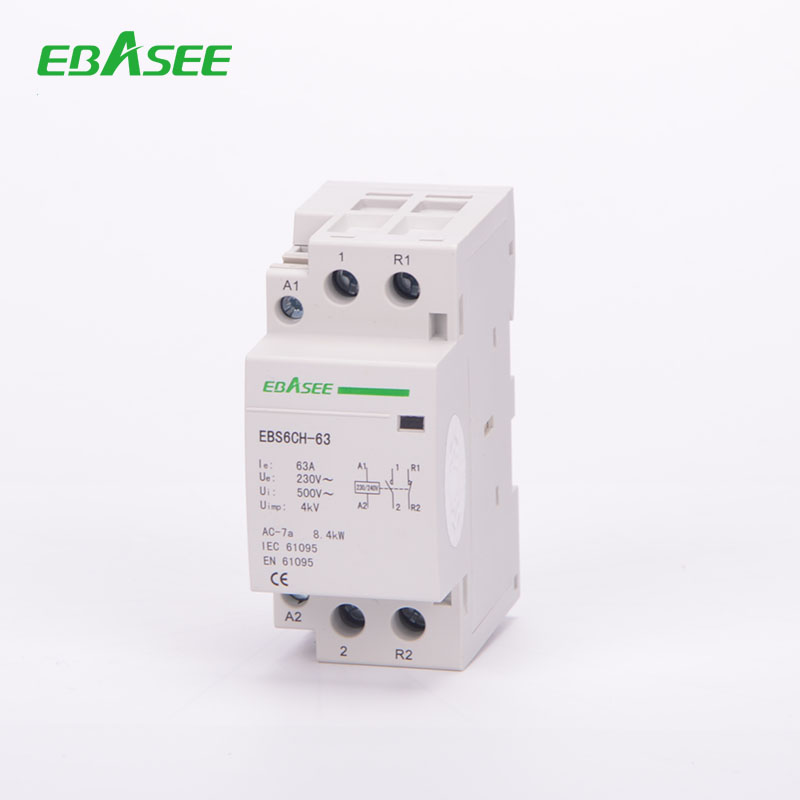

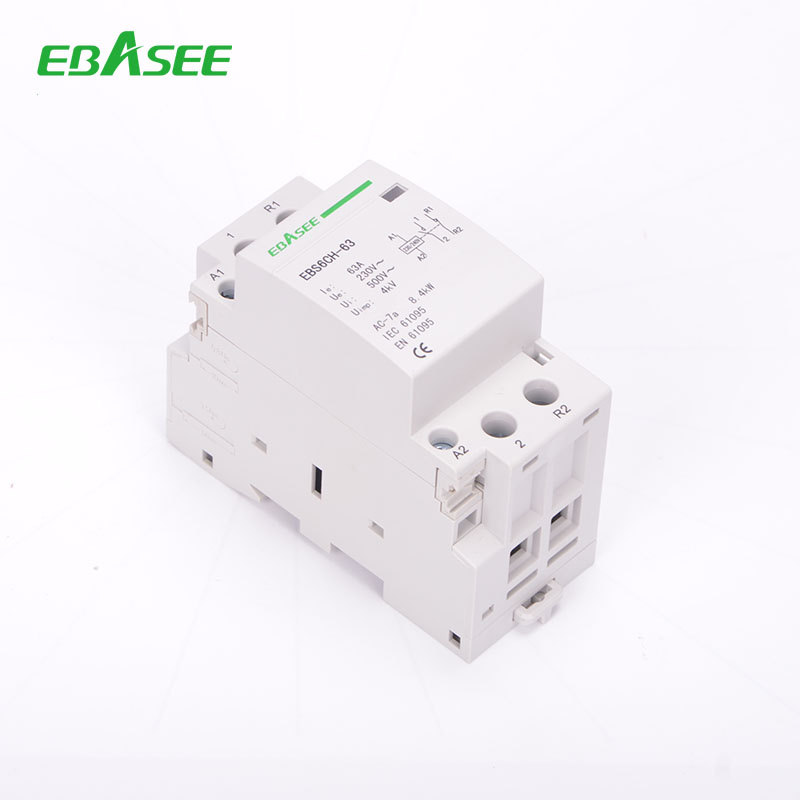

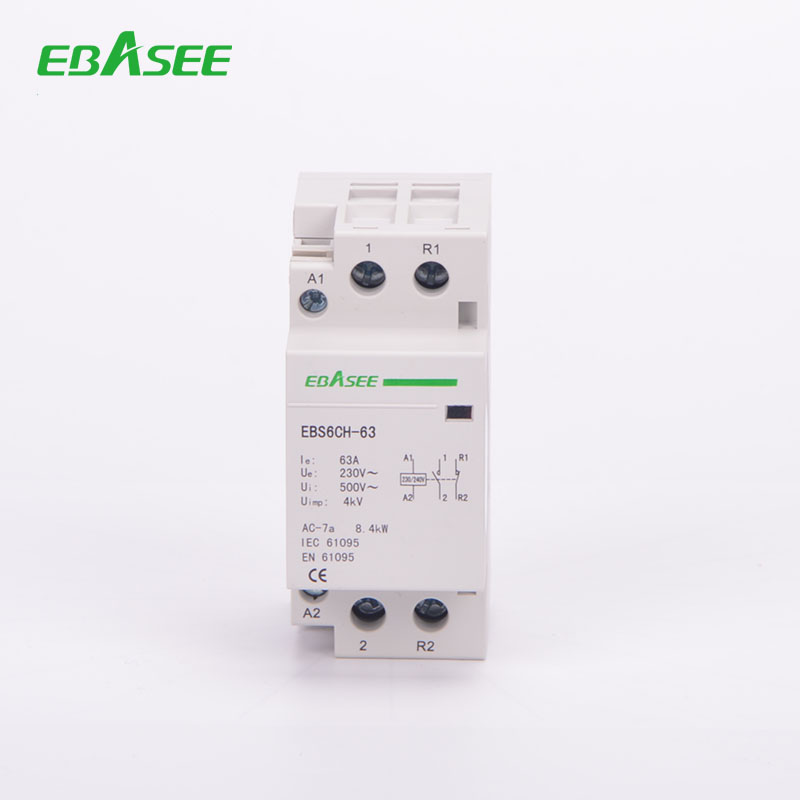

EBS6CH Mini Contactor

EBS6CH Mini Contactor Standard:IEC61095 Poles: 1P, 2P, 3P, 4P Contactor:2NO, 4NO Rated current: 16A~63A Control voltage: 220V 230V 240V Ambient temperature: -5~+40℃, the average value cannot exceed to +35℃ within 24h Altitude: ≤2000 m Relative humidity: ≤95% Pollution level: II. Installation locatio...



Function

EBS6CH household contactor, module AC contactor is mainly applicable to a power system of AC 50Hz(or 60Hz) rated working voltage up to 400V, and in a line of application with rated working voltage up to 230V and rated working current up to 63A. It is used to remotely make and break the line.
The product is widely used in dwelling house, hotels, office building, shopping mall, etc to realize the auto control function.



Technical Parameter

Model type


EBS6CH

Standard


IEC61095

Poles


1P, 2P, 3P, 4P

Contactor


2NO, 4NO

Rated current


16A~100A

Control voltage


220V 230V 240V



Features

1.Modular installation, smart design and compact structure

2.Standard din-rail installation, standard modular dimensions, suitable to distribution box installation together with MCBs

3.Higher safe protection with fire resistant material

4.Safe application with function indication hole

5.Noise free better application for hotel and hospital



Applicable Working

Ambient temperature


-5~+40℃, the average value cannot exceed to +35℃ within 24h

Altitude


2000 m

Relative humidity


95%

Pollution level


II.

Installation location


Place free from erosion of rain and snow



Order Note

1.Product Name

2.Poles

3.Rated current

4.Main Contact type

5.Coil specification
