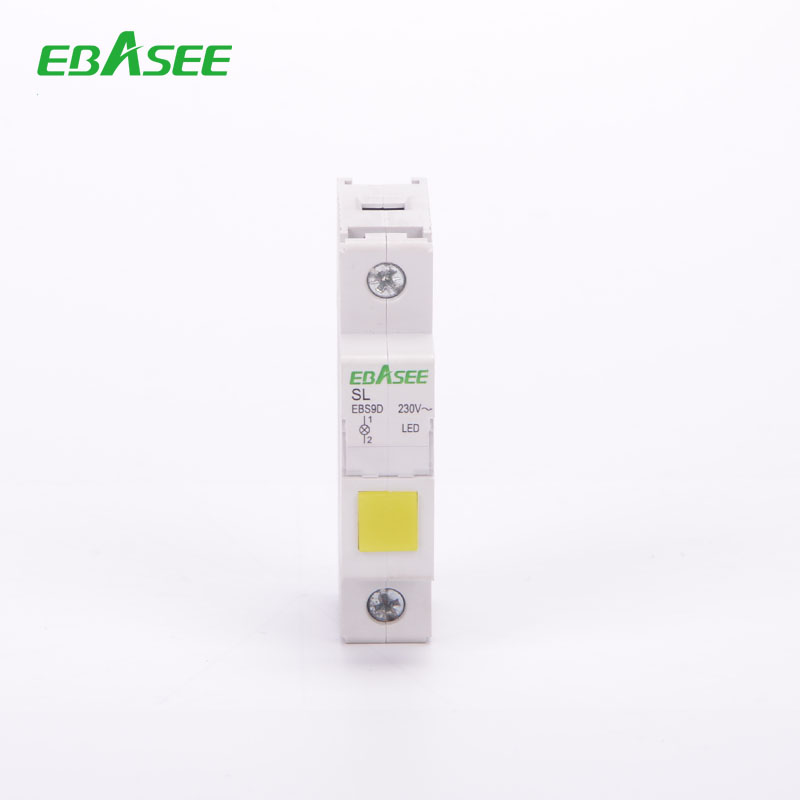

Resistance Type LED Modular Indicator
EBS9D ModularIndicating Light Ambient temperature:-5~+40℃ , the average value cannot exceed to +35℃ within 24h Altitude:≤2000 m Relative humidity:≤95% Pollution level: II. Installation location: Place free from erosion of rain and snow
Function
EBS9D Modular Indicating Light is applicable to circuit with rated voltage 230V and frequency 50/60Hz for visual indication and signaling.
Technical Parameter
Rated voltage | 230V AC 50/60Hz |
Depressurization | resistance type, resistance-capacitance type |
Colour | red, green, yellow |
Max power | 0.6W |
Illumination | LED |
Service duration | 30,000 hours |
Light brightness | ≥100cd/m2 |
Connection capacity | rigid conductor 10mm2 |
Pollution grade | 3 |
Feature
●Low service duration, minimum power consumption
●Compact design in modular size
●Easy installation
Order Note
1.Product name and model
2.Lighting source and lamp shade color
3.Quantity
