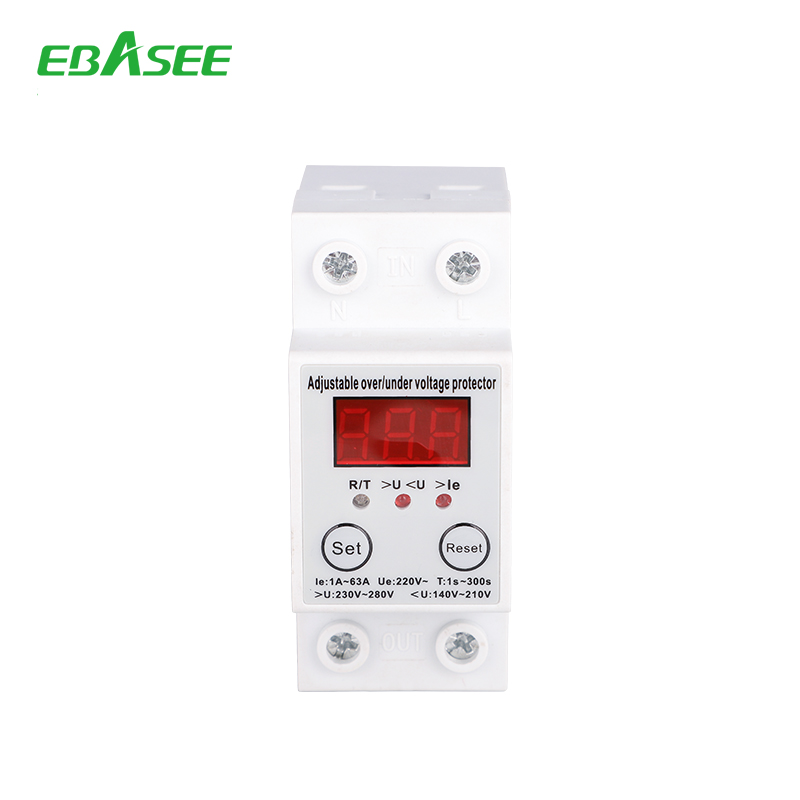

BX2PY6 Over Under Voltage Protector Device
BX2PY6 Adjustable Over Under Voltage Protector Device 1.Line instant or transient overvoltage occurs, the protector dose not malfunction. 2.All the functions of automation, no need manual operations, select and use double lights indicator. 3.Shape modular design, rail mounting. 4.Fault voltage is h...
Function
Self-recovery over and Under Voltage Delay Protector is Ebasee’s development of a new generation of products. This voltage product has reasonable design assembling imported components and domestic famous components, with advanced manufacturing process. It can cut off power supply quickly and reliably under the condition of high voltage surge and under-voltage, to protect household appliances，when the voltage recovery normal ,it can connect circuits automatically after a delay ,to recovery power, which can protect electric appliance to avoid the impact of the moment when the power supply is connected, all the functions of automation ,no need manual operations, select and use double lights indicator.
Technical Parameter
Specification | BX2PY6 |
Frame level (A) | 100 |
Rated current (A) | 32,40,63.80.100 |
Rated voltage (V) | 230AC |
Rated frequency (Hz) | 50/60 |
Over-voltage action cut-off value(V) | 275±5 |
Normal-voltage action cut-off value(V) | 240~260 |
Under-voltage action cut-off value(V) | 175±5 |
Normal -voltage action cut-off value(V) | 190±5 |
Electricity transmitting delay after cut-off(S) | ≤60S |
Self power consumption(W) | ＜1 |
Mechanical life (times) | ＞100000 |
Order Note
Following information need to be marked when order
1.Product name and model
2.Poles
3.Rated current
4. Electricity transmitting delay after cut-off
5. Rated voltage and frequency
6. Over & Under -voltage action cut-off value
7.Quantity
