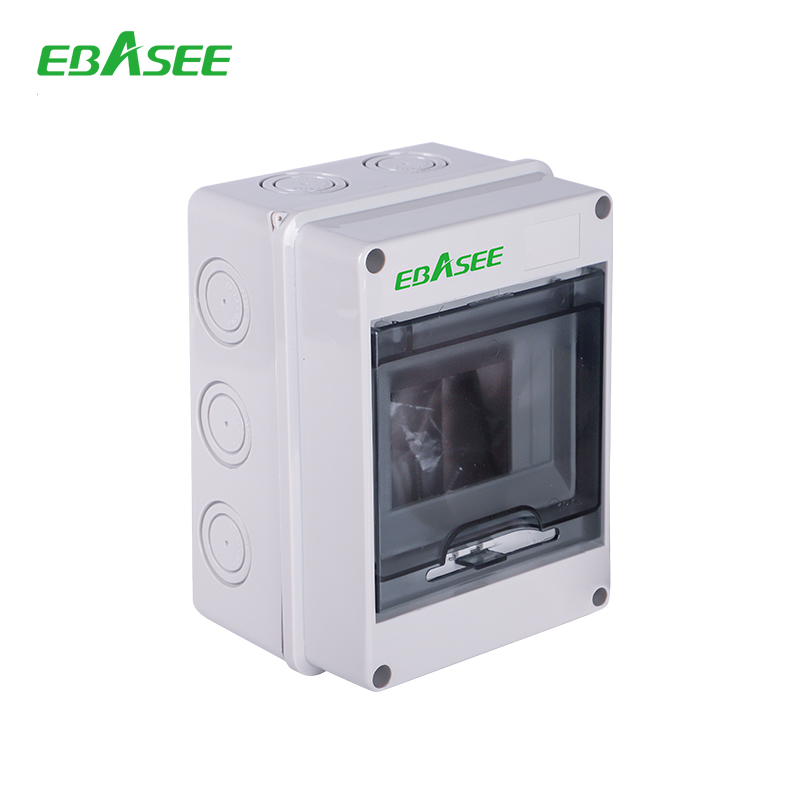

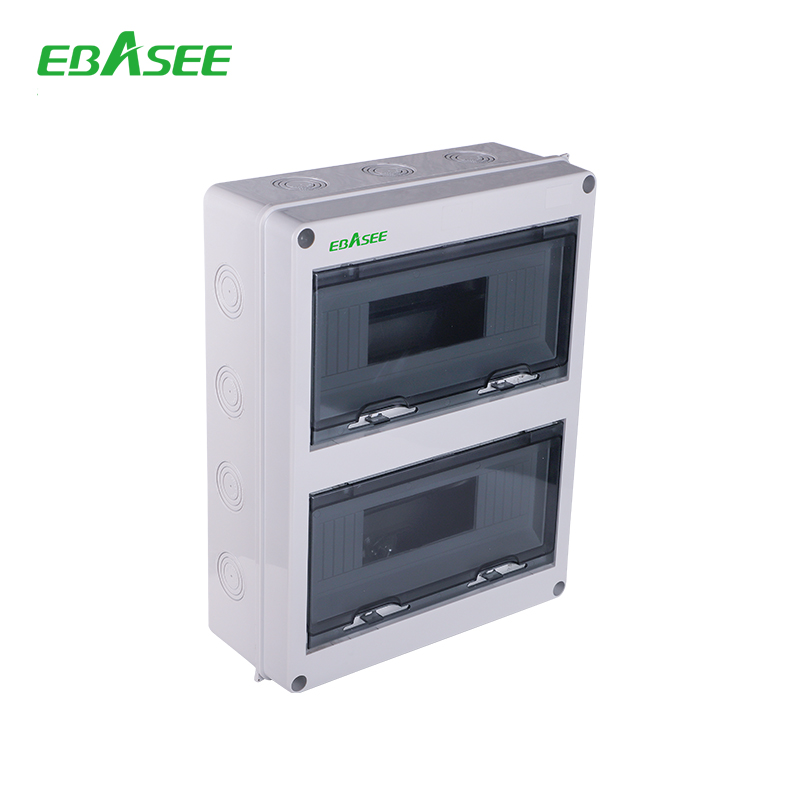

EBSHT Plastic Distributio DB-BOX
EBSHT Junction Box 1.Suitable for indoor and outdoor electric,communication, fire fighting apparatus,iron 2.petrochemical industry,electron,power system ,railway,building,mine,air and sea port
Technical Parameter
Model Name | EBS-HT | |
Certificates | CE RoHS | |
Body materials | ABB or PC | |
Protection level | IP65 | |
Installation | Inside and outside |
Characteristics
n Impact, heat, low temperature and chemical resistance ,excellent electrical performance and surface gross etc.
n Installation
Inside: There are installation holes in the base of circuit board or din rail (more than 2 pieces
of M4 standard brass nuts in each box)
Outside: The products can be directly fixed on the wall or other flat board with screws or
nails via the screw holes in the base.
Dimension
Model Code | G.W.(kg) | N.W.(kg) | Qty/CTN(pcs) | Carton dimension(cm) |
EBS-GT300*200*160 | 12.9 | 11.4 | 8 | 60*46*32 |
EBS-GT300*200*180 | 13.4 | 11.9 | 8 | 64.5*40.5*54 |
EBS-GT300*300*180 | 13.8 | 12.3 | 6 | 61.5*34*56.5 |
EBS-GT400*300*180 | 17.0 | 15.5 | 6 | 66*41*56.5 |
EBS-GT500*400*200 | 13.5 | 12.0 | 3 | 51*44*63 |
EBS-GT600*400*220 | 17.5 | 16.0 | 3 | 61.5*41*68.5 |
Ordering Note:
Product name, model
Installation type
Number of loops
Color of the door
Material
