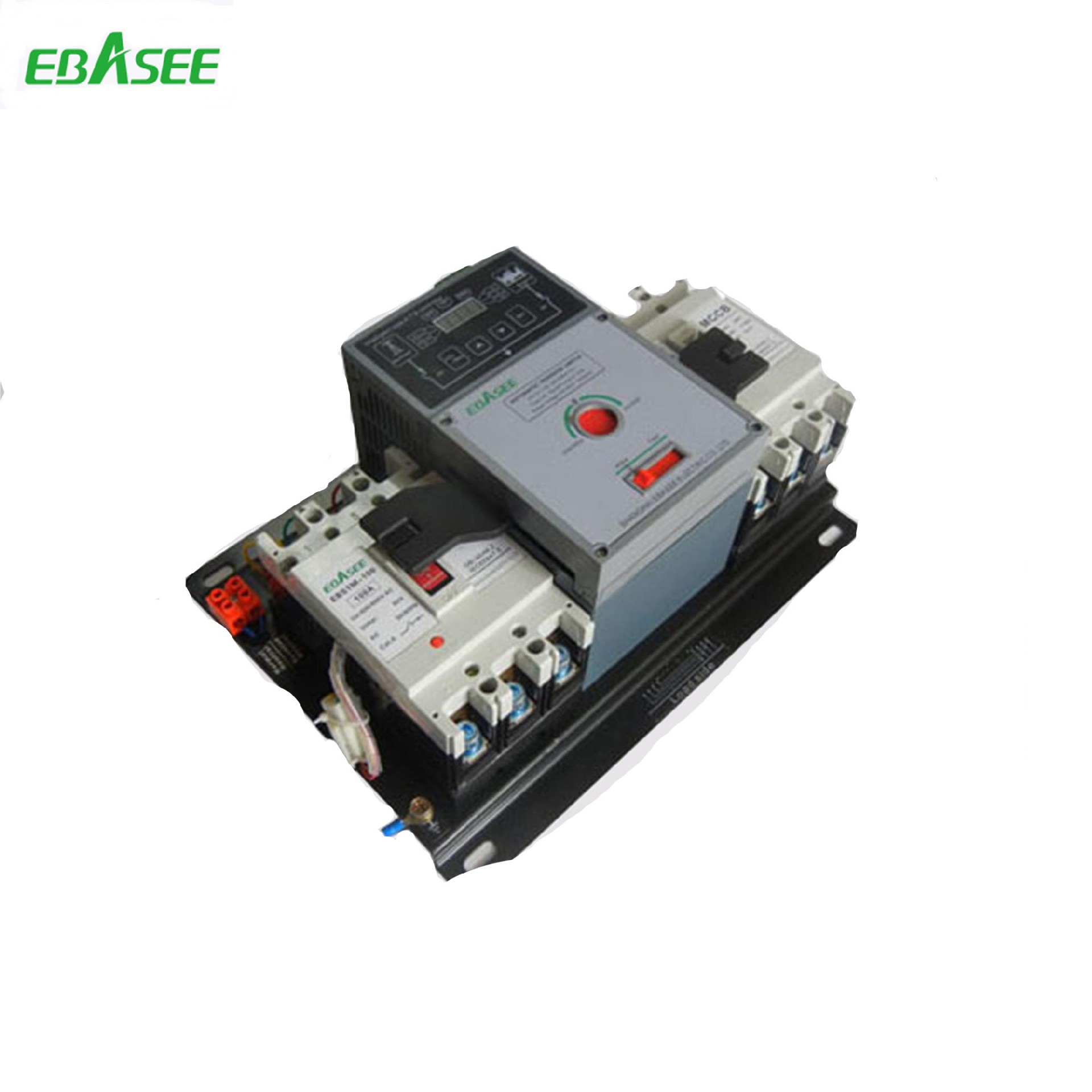

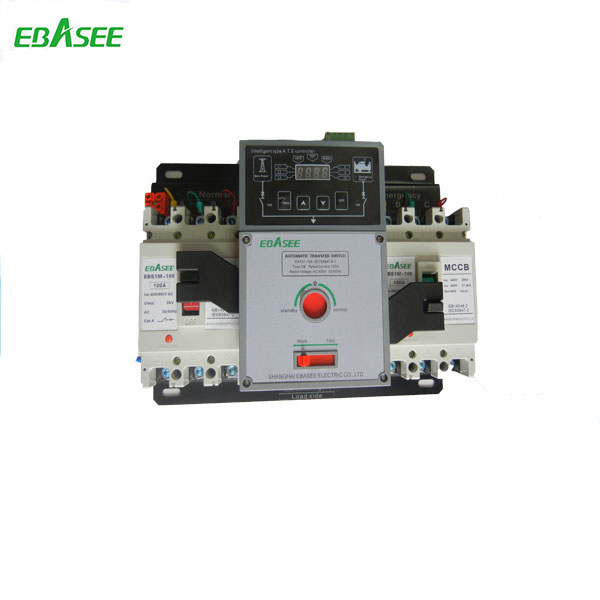

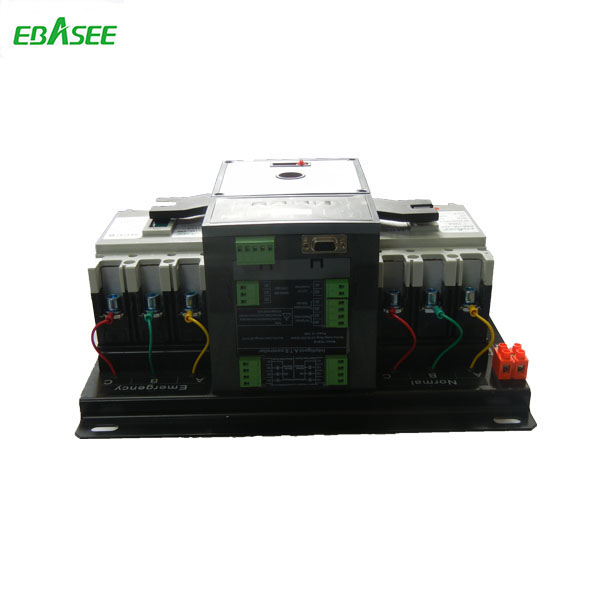

EATS1 Automatic Changeover Switch ATS
EATS1 EATS1 1.Ambienttemperature:-5~+40℃, the average value cannot exceed to +35℃within 24h 2.Altitude:≤2,000m 3.Relative humidity:≤95% 4.Pollution level:II. 5.Installation location:Mount on the place where has no obvious vibration or impact
Function
Model type EATS1 series automatic transfer switch is a new generation of the latest development products, ATS generally used to monitor the power supply circuits. When the power failure, ATS will changeover to backup power automatically, so that complete conversion power supply system.
At present, in particular suited for the important electricity power places where disallow to failure, in order to meet the needs of the scene, automatic switch has self-input and self-recover, self-input without self-recover, utility to utility, utility- generators work with a variety of functions, the product applied in 240V, AC 50Hz, rated current from 10A to 1250A(CB class) autocratically switch products.
Technical Parameter
Model type | EATS1 | |
Rated working voltage | 220V AC 50Hz | |
Changeover time delay | 0.5s | |
Recovery delay | 0.5s~90s continuous resettable | |
Under voltage changeover value | 145V~210V continuous resettable | |
Overvoltage changeover value | 230V~300V continuous resettable | |
Changeover time | Less than 4s | |
Type | CB type | |
Pole | 3 pole, 4 pole | |
Certificate | CE, AAA |
Features
n Alternative work by automatic and manual operation, changeover type is auto switch and auto recovery
n Full function of overload and short circuit protection
n Monitoring the two sources, whether is loss phase, under voltage, loss voltage and such abnormal conditions, the indication show whether in located normal voltage
n There is a team with dry output contact for standby generators for start up and shut down
n conversion type is self-input and self-recover
Ordering Note:
Protection Type
Rated Current
No. of Poles
Frame Type
