Function

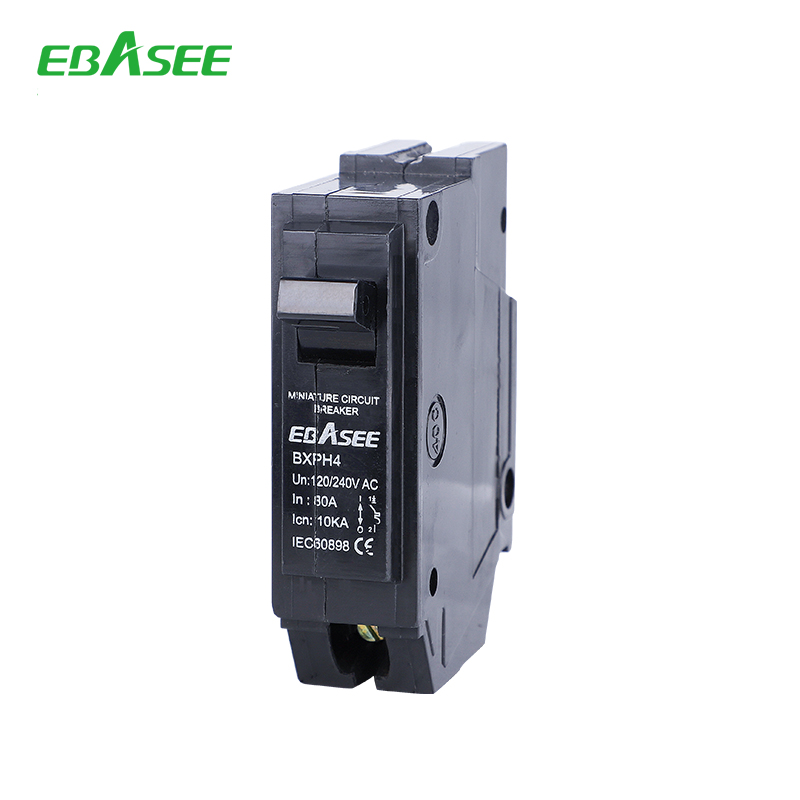

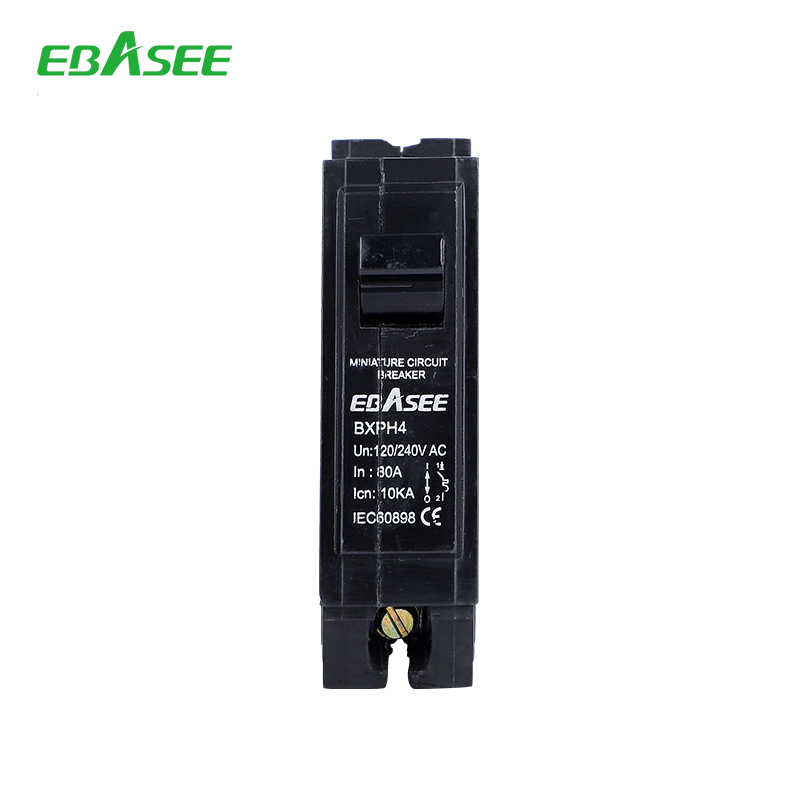

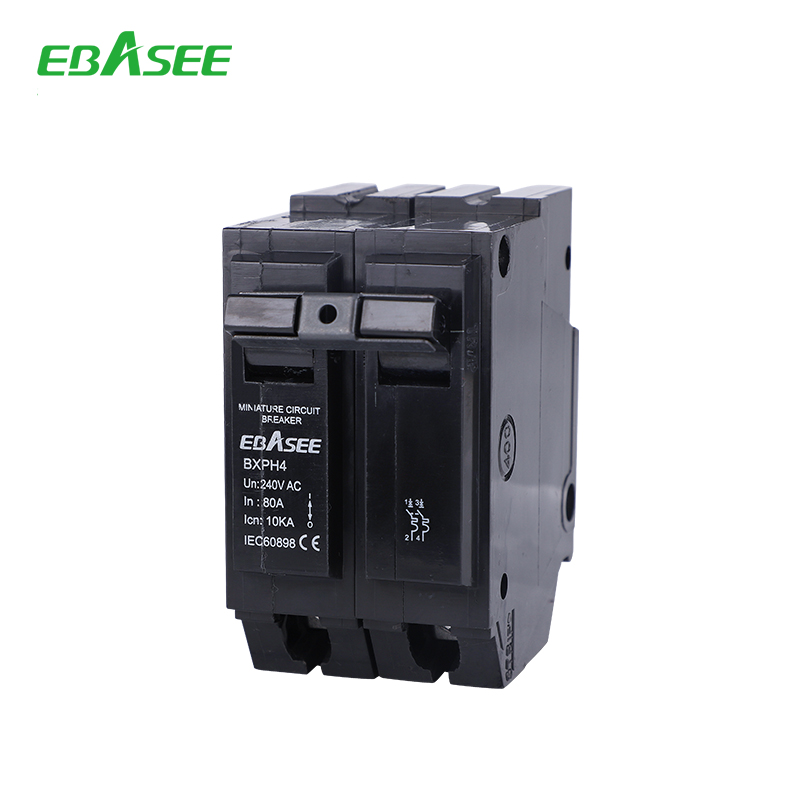

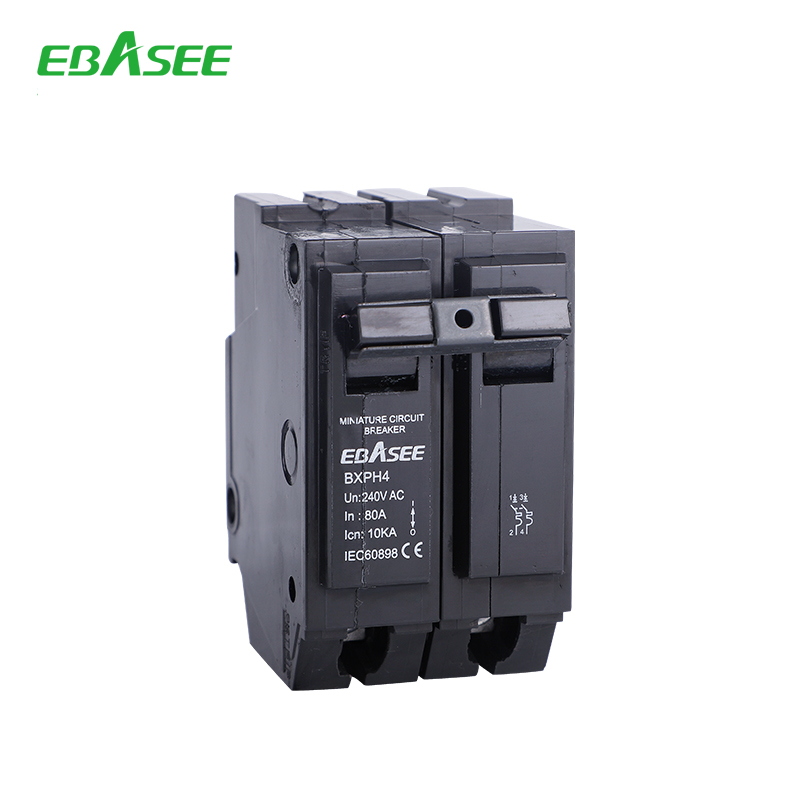

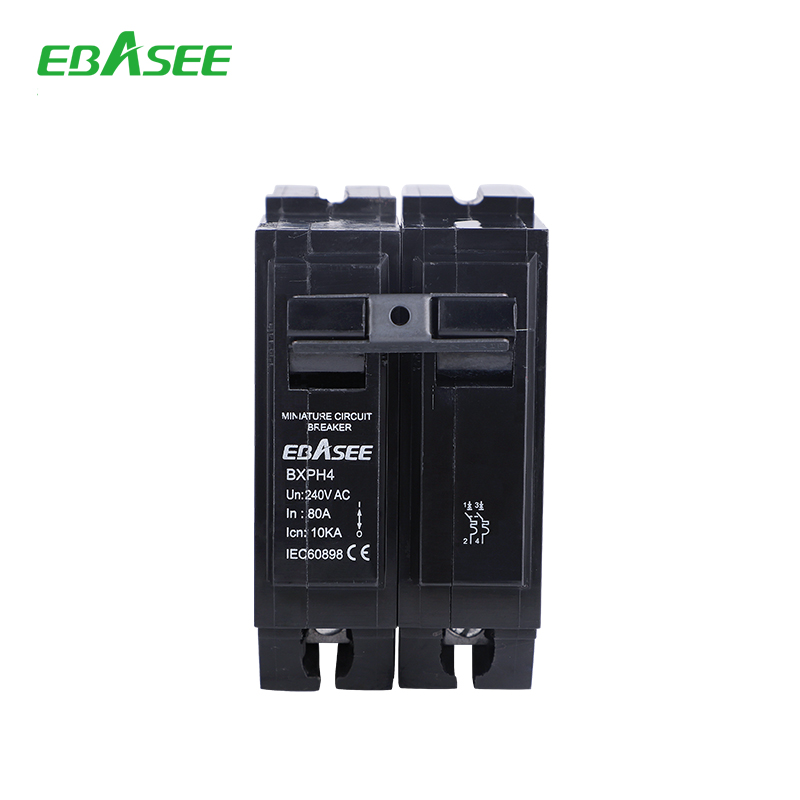

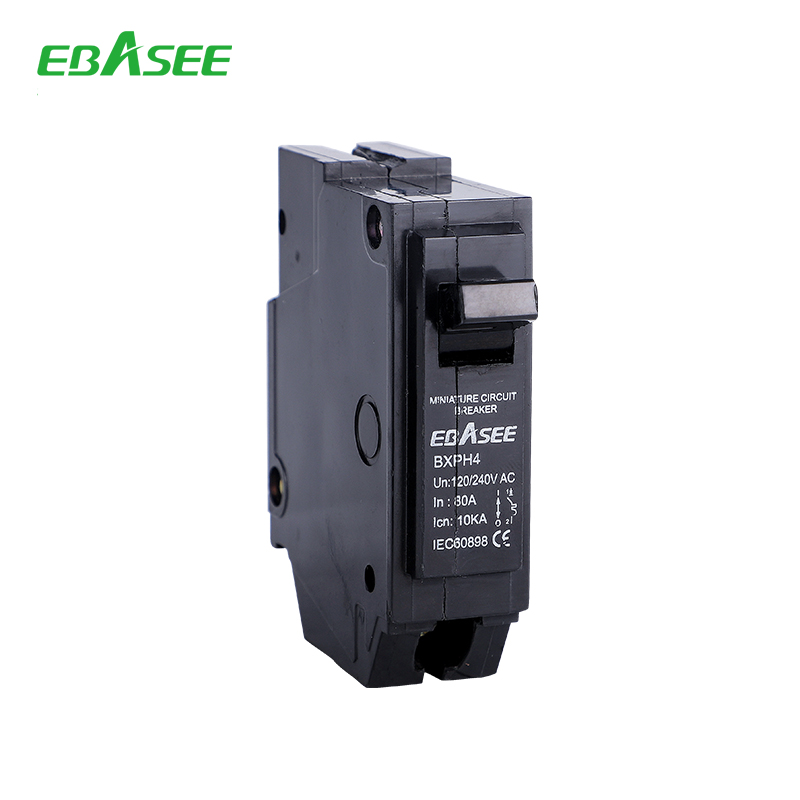

BXPH4 series 4 Square D THQL QO Type plug in circuit breaker is mainly used for overload and shortcircuit protection. Mainly application for commercial and industrial lighting and distribution. With features of good shape, lightweight, reliable performance and high breaking
capacity. Shell and parts are composed of fire-resisted and shake-proof plastics, with long working life. This product is
available in overload and shortcircuit protection of 50/60Hz AC circuit, rated voltage(single pole) of 240V, (two and three
poles) of 415V. Also used for abnormal circuit exchange and normal lighting. This product complies with IEC60898-1
Technical Parameter
Model name | BXPH4 | |
Trip Style | Non-Interchangeable | |
Poles | 1P,2P,3P | |
Rated current In(A) | 6A,10A,15A,20A,25A,30A,40A,50A,60A,70A,80A,100A | |
Rated voltage Un(V) | 110/220(1P), 240/415(2P), 415(3P) | |
Trip Function | LI | |
120 Vac Interrupting Rating | 10 KAIC | |
120/240 Vac Interrupting Rating | 10 KAIC | |
Product Line | Q-Line (Plug-In) | |
| Electrical life(times) | 4000 | |
| Mechnical life(times) | 160000 | |
Special Markings | HACR |
